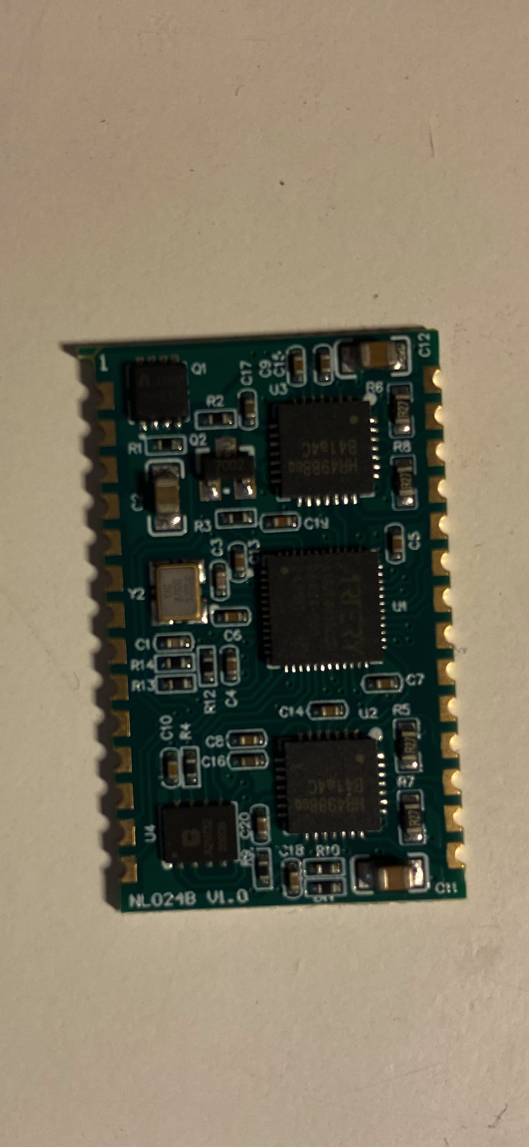

NL024B overview

The tiny NL024B is part of a new generation of powerful ARM based multi-head 58mm and 80mm thermal printer controllers designed and supplied by Norden Logic. The controllers shine with their tiny size, huge RAM and Flash memory, support for a wide range of input voltage, real-time head temperature control， real-time paper-out monitor, custom fonts, user definable flash storage and a big selection of built-in language fonts. The NL024B can be switched between 58mm and 80mm print head support. NL024B is designed following printer head manufacturer’s strobe control line specifications, for long print head life, faster heating time, clear print and reduced print current. The NL024B uses the industry standard ESC/POS control commands. The initial release of the NL022 supports directly 8-bit, UTF8 and UTF16 characters as well as Chinese and Japanese, 170 languages and many more. SMD device supporting print heads from 5V up to 24V with auto-cutters and without auto-cutters of the same family.

The following are supported and more are being added:
58mm:
Fujitsu FTP628MCL401
PRT PT486F08401
and compatible

80mm:
Fujitsu FTP638MCL401
Fujitsu FTP637MCL401
PRT PT723F08401
PRT PT723F24401
PRT PT72EP
and compatible
